Rob. Smith · #21 (**permalink**) 09-23-2007, 04:26 AM

I thought this might happen...I don't have any pics or a digital camera. I will try to get a pic. And I will try to send a drawing...Please be patient I will come through.
Smithy

Ross Smith · #22 (**permalink**) 09-23-2007, 08:17 AM

FYI All,

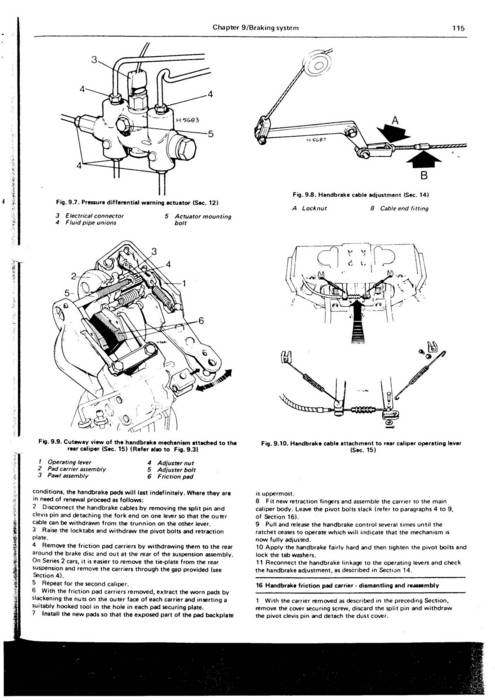

Here are the pages from the Jaguar Manual for adjusting the handbrake.

My theory is that the handbrake levers that we use simply do not have enough travel to pull the handbrake pads tight. The full size images of these pages are in my gallery.

Cheers

Ross

*Cobber* · #23 (**permalink**) 09-23-2007, 06:09 PM

I will be using the hand brake from an xjs which has 55mm of cable pull in total. The cable just goes straight to the calipers.

To me it looks like that bell crank on the xj6/12 converts a long pull to a short pull you would just get more leverage.

cant work out how to link photos but they are in my gallery.

http://www.clubcobra.com/photopost/s...0&ppuser=27107

http://www.clubcobra.com/photopost/s...0&ppuser=27107
