Default Fuel line change to 1/2"

Need to run a 1/2 fuel line from the tank, the new engine has higher fuel delivery needs-don't want to chance using the existing 3/8" line. Has anyone switched to 1/2"??? I'm assuming I will need to change the fitting at the tank pick-up??? Jay any input?

thx
__________________
Gary Bowman
Voorhees NJ/Key Largo Fla/Ventnor NJ
Reply With Quote
  #2 (permalink)
Old 02-11-2013, 03:36 PM
Cashburn's Avatar
Backdraft Racing Dealer
Visit my Photo Gallery
Lifetime Contributor

Join Date: Dec 2004
Location: North Haven, CT
Cobra Make, Engine: Backdraft Racing
Posts: 5,121
Not Ranked
Default

Get the new aluminum tank from BDR. We usually convert the 3/8" to a return line... oh yeah that's for fuel injection.
__________________
IT'S NOT REAL. IT'S UNREAL.
VINTAGE MOTORSPORTS
888.427.1965 | www.vintagemotorsports.com
Reply With Quote
  #3 (permalink)
Old 02-11-2013, 04:04 PM
GBowman's Avatar
CC Member
Visit my Photo Gallery


Join Date: Dec 2011
Location: Voorhees, NJ
Cobra Make, Engine: BDR #1230/B2 445CI SBF
Posts: 295
Not Ranked
Default

Jay...first off, OUCH! Second...can I convert the fitting to 1/2"??? If it comes as 3/8's wouldn't I need to re-drill/tap a new fitting?

Thx
__________________
Gary Bowman
Voorhees NJ/Key Largo Fla/Ventnor NJ
Reply With Quote
  #4 (permalink)
Old 02-11-2013, 05:33 PM
951mat's Avatar
CC Member
Visit my Photo Gallery


Join Date: Jul 2005
Location: Tulsa, ok
Cobra Make, Engine: Lonestar, 427 Center Oiler
Posts: 352
Not Ranked
Default

If its 3/8" pipe threads, you may not need to. Its id is almost 1/2". If its a -6 AN, you'll want bigger.
Reply With Quote
  #5 (permalink)
Old 02-11-2013, 05:52 PM
CC Member
Visit my Photo Gallery


Join Date: Oct 2003
Posts: 4,078
Not Ranked
Default

And plumb it all with hard line.
__________________
Chas.
Reply With Quote
  #6 (permalink)
Old 02-11-2013, 07:17 PM
CC Member
Visit my Photo Gallery


Join Date: Apr 2012
Location: Bay Area (Peninsula), CA
Cobra Make, Engine: ERA 427, 427/487 side-oiler
Posts: 1,248
Not Ranked
Default

I'm having ERA plumb my car with a -8AN fuel line (Brent's recommendation) to feed my 427.
Reply With Quote
  #7 (permalink)
Old 02-11-2013, 07:35 PM
Cashburn's Avatar
Backdraft Racing Dealer
Visit my Photo Gallery
Lifetime Contributor

Join Date: Dec 2004
Location: North Haven, CT
Cobra Make, Engine: Backdraft Racing
Posts: 5,121
Not Ranked
Default

Think about the pickup tube...
__________________
IT'S NOT REAL. IT'S UNREAL.
VINTAGE MOTORSPORTS
888.427.1965 | www.vintagemotorsports.com
Reply With Quote
  #8 (permalink)
Old 02-11-2013, 07:51 PM
lovehamr's Avatar
Stolen Avitar
Visit my Photo Gallery


Join Date: Oct 2004
Location: Brunswick, GA
Cobra Make, Engine: BDR 1311 428PI
Posts: 3,044
Not Ranked
Default

I'm in that process right now for a change over to FI. I've converted the stock feed line (3/8" and 6AN) to a return as Jay suggested and have run 1/2" aluminum hard line and 8AN lines for feed. As jay said, the tank is my hold up as well. Mine is an aluminum tank with nothing but a couple of tubes welded into it. I don't even know what size those tubes were but they were smaller than 1/2" and larger than 3/8", probably some metric size. Maybe Jay can shine some light on that. To fix that choke point, I ordered a couple of 1/2" NTP weld-in bungs from Summit and was supposed to pick up the tank with the new bungs and pickup welded in today. Alas it was not to be. I've also had to make a few changes to how things were routed. The high pressure FP requires the use of a pre and post filter which made me put the pressure line in on the passenger side for packaging reasons. Thus far the line installation has turned out pretty sanitary. I'll try to get a couple of picks of what I've done so far.

UPDATED w/ PICS. From the back, forward;

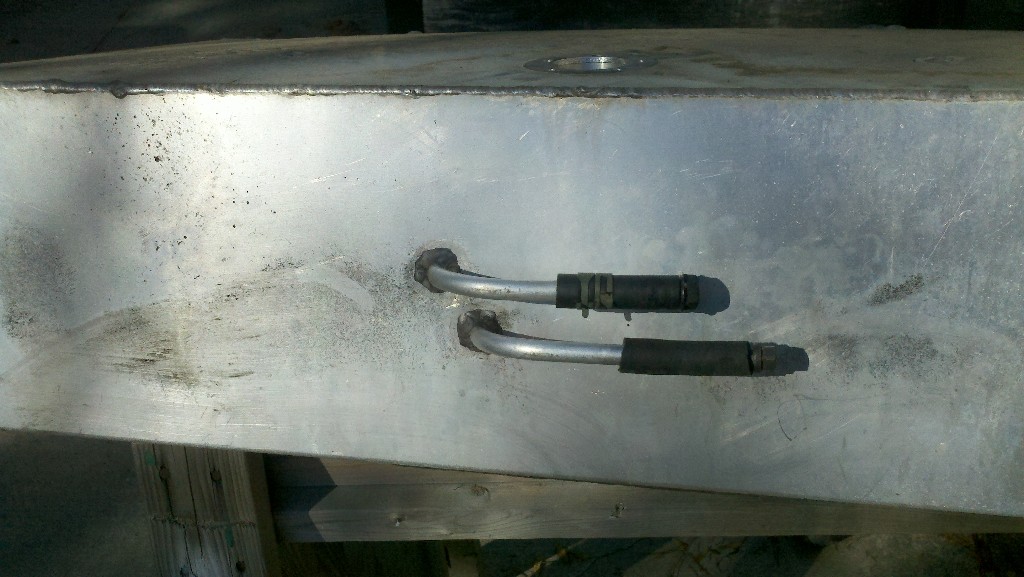

What my tank looked like:

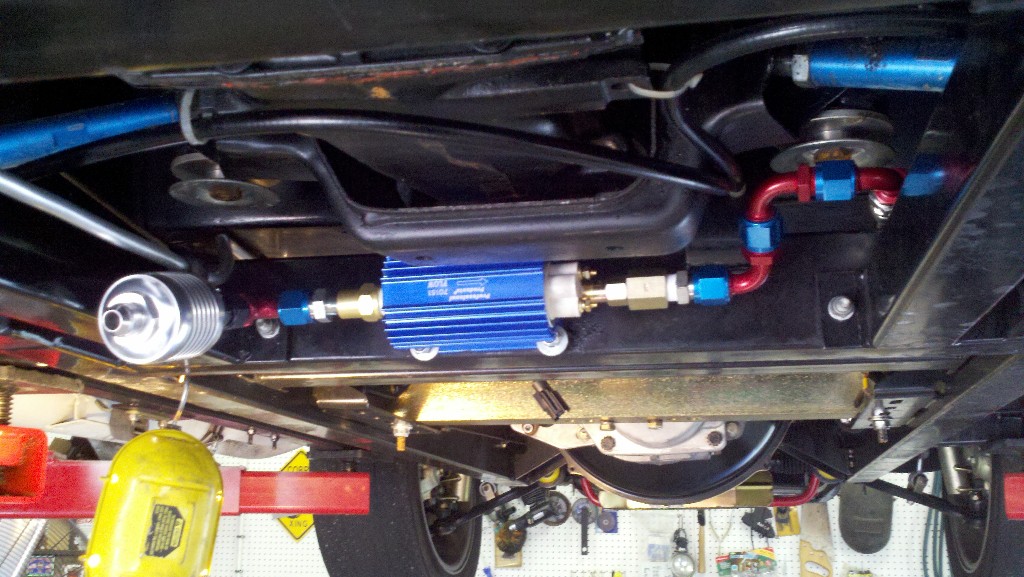

Looking at the frame cross member just forward of the diff at the pre-filter, HP pump and fittings to go over the frame to the hard line:

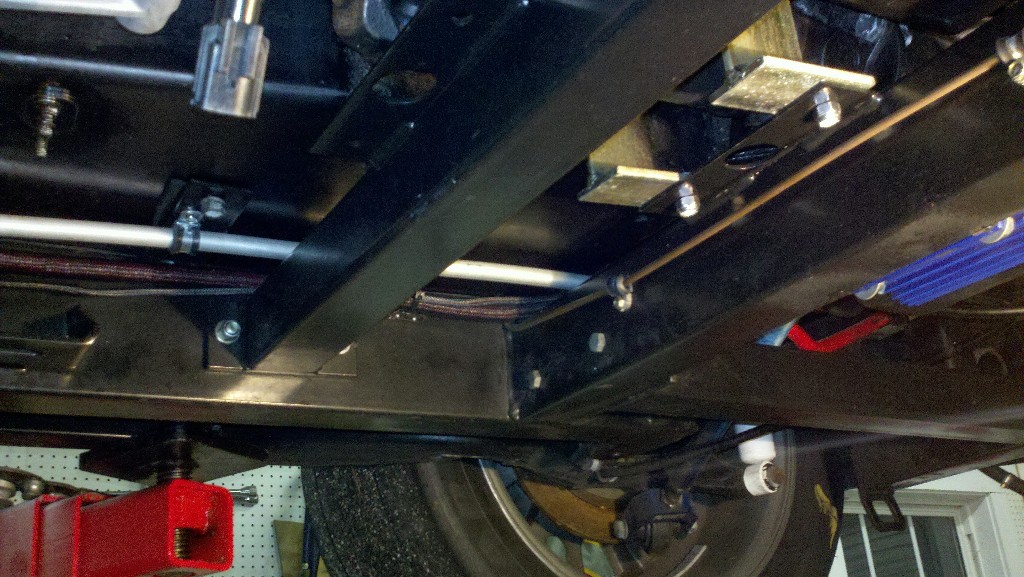

Right side frame rail, hard line attached with Adel clamps from pump:


Hard line attached to HP filter ( secured with hose clamp and metal screw to frame rail)


Hard line from HP filter up to 8AN line at throttle body:


Sorry for the crappy phone photos but that's all I have for now.

Steve

Last edited by lovehamr; 02-11-2013 at 08:43 PM..
Reply With Quote
  #9 (permalink)
Old 02-11-2013, 08:56 PM
CC Member
Visit my Photo Gallery


Join Date: Jan 2008
Location: Nashville, TN
Cobra Make, Engine: Backdraft, SBF 351w (463 CI)
Posts: 272
Not Ranked
Default

Steve i would put my return in one of the top conners as far away from the pickup as possible. U do not want to return the HOT fuel to the pickup area. FYI my factory BDR fuel return tube was welded all most completely closed.
spent days trying figuring out what was wrong with the EFI
Reply With Quote
  #10 (permalink)
Old 02-12-2013, 07:24 AM
CC Member
Visit my Photo Gallery


Join Date: Jan 2005
Location: Rancho Cucamonga, ca
Cobra Make, Engine: SPF 239
Posts: 820
Not Ranked
Default

Lovehamr

Your plumbing looks great. Do you have any flex line connecting the motor to the Alum hard line?


I built a return style system for my SPF last summer. I used -10 (5/8) stainless tubing terminating at the base of the firewall, with about 20” of Aeroquip AQP hose and XRP socketless fittings to the regulator, and -8 to each of the carb inlets. Then I wrapped all the hose in heat reflective tape.
It sure moves a dam lot of fuel at 6.5PSI!!

I built it with the intent of feeding my big EFI motor shortly. you can almost never have "too much" fuel system!! lol

Jason

Last edited by D-CEL; 02-12-2013 at 09:59 AM..
Reply With Quote
  #11 (permalink)
Old 02-12-2013, 07:39 AM
lovehamr's Avatar
Stolen Avitar
Visit my Photo Gallery


Join Date: Oct 2004
Location: Brunswick, GA
Cobra Make, Engine: BDR 1311 428PI
Posts: 3,044
Not Ranked
Default

Jason, yes I'm using 8AN hose connecting the pressure side and 6AN connecting the return side. Even though my engine is solidly mounted I still think the vibration would kill the tubing if I didn't build any flex into it.

Steve
Reply With Quote
  #12 (permalink)
Old 02-12-2013, 08:57 AM
Cashburn's Avatar
Backdraft Racing Dealer
Visit my Photo Gallery
Lifetime Contributor

Join Date: Dec 2004
Location: North Haven, CT
Cobra Make, Engine: Backdraft Racing
Posts: 5,121
Not Ranked
Default

Steve,
You have a tank design that did not last very long in production. As you know the tanks after that were different styles of plastic. Through BDR in USA they have wisely sourced a couple styles of aluminum tanks domestically. They can also build to your spec. if you would like additional ports etc.
