Billet Aluminum Chassis Fixtur--Daytona Coupes We Are Making For Shelby
Hey Guys,
We've been a little quiet around here lately. Here is the latest out of Kirkham Motorsports Skunkworks.

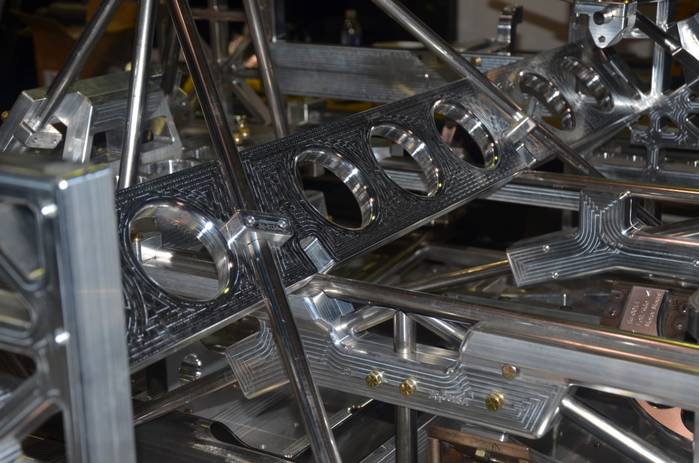

This is a billet aluminum chassis fixture for the Daytona Coupes we are making for Shelby.
Thought you might like a sneak peak.
David
Last edited by David Kirkham; 07-20-2015 at 10:05 PM..
|
-
Advertising
07-20-2015, 10:07 PM
|
|
CC Member
|
|
|
Join Date: Mar 2001
Location: Provo,
Ut
Cobra Make, Engine: Kirkham, 427
Posts: 6,990
|
|
Not Ranked
Part of the steering column support above the driver's foot box.
Last edited by David Kirkham; 07-20-2015 at 10:09 PM..
|
07-20-2015, 10:08 PM
|
|
CC Member
|
|
|
Join Date: Mar 2001
Location: Provo,
Ut
Cobra Make, Engine: Kirkham, 427
Posts: 6,990
|
|
Not Ranked
This is the rear of the backbone. It is a spiderweb of tubes that all have to be held together perfectly. The tubes are all laser cut.
 |
07-20-2015, 10:11 PM
|
|
CC Member
|
|
|
Join Date: Mar 2001
Location: Provo,
Ut
Cobra Make, Engine: Kirkham, 427
Posts: 6,990
|
|
Not Ranked
Door hinge fixture:
Last edited by David Kirkham; 07-22-2015 at 07:24 PM..
|
07-20-2015, 10:19 PM
|
 |
Full Blown Member
|
|
|
Join Date: Sep 2008
Cobra Make, Engine: KMP 427 S/C, Twin Paxton 511 FE
Posts: 2,594
|
|
Not Ranked
Glad to see you back.
As usual, amazing!
__________________
rodneym
|
07-21-2015, 06:56 AM
|
|
CC Member
|
|
|
Join Date: Mar 2009
Location: Mendota,
IL
Cobra Make, Engine:
Posts: 697
|
|
Not Ranked
Nice! Do you mind if bring my chassis I am building next weekend and see how it fits your jig? Just kidding! I sure had to use my imagination to get all my tubes in the proper place with no jig.
Mark
|
07-21-2015, 07:39 AM
|
 |
Senior Club Cobra Member
|
|
|
Join Date: Jun 2003
Location: West Linn,
OR
Cobra Make, Engine: ERA #684, 428 FE, TKO600
Posts: 1,378
|
|
Not Ranked
David:
Another piece of "Metal Art". Very impressive.
DonC
|
07-21-2015, 08:42 AM
|
|
CC Member
|
|
|
Join Date: Oct 2010
Cobra Make, Engine: Superformance
Posts: 663
|
|
Not Ranked
Geez, I need a cigarette after all of that.
|
07-21-2015, 01:43 PM
|
|
CC Member
|
|
|
Join Date: Mar 2001
Location: Provo,
Ut
Cobra Make, Engine: Kirkham, 427
Posts: 6,990
|
|
Not Ranked
|
07-21-2015, 01:50 PM
|
|
CC Member
|
|
|
Join Date: Dec 2014
Cobra Make, Engine: Superformance, Survival Motorsports aluminum FE 482
Posts: 662
|
|
Not Ranked
That's some dedication. The design and machine time must be immense.
Truly industrial art.
__________________
Bill
|
07-21-2015, 01:56 PM
|
 |
Senior Club Cobra Member
|
|
|
Join Date: Mar 2005
Location: Manchester,
NH
Cobra Make, Engine: AK1085 (302 Street), HTM111 (427 Comp), CSX2375R (289 Comp) and COB5999 (427 S/C)
Posts: 18,998
|
|
Not Ranked
I saw this on my recent visit to KMS................
AWESOME work to both David and David.......
This by itself is a work of art!  |
07-21-2015, 08:14 PM
|
 |
CC Member
|
|
|
Join Date: Apr 2008
Location: Melbourne,
Vic
Cobra Make, Engine: Some polish thing... With some old engine
Posts: 2,286
|
|
Not Ranked
Awesome!
Keep the details coming!
|
07-21-2015, 09:05 PM
|
|
CC Member
|
|
|
Join Date: Mar 2008
Location: Lantana,
TX
Cobra Make, Engine: Just dreaming at this point
Posts: 201
|
|
Not Ranked
Good God.......even your layout table is a work of art!!!
I'd use that as a dining room table!!
|
07-21-2015, 09:32 PM
|
|
CC Member
|
|
|
Join Date: Mar 2008
Location: Lantana,
TX
Cobra Make, Engine: Just dreaming at this point
Posts: 201
|
|
Not Ranked
Good God.......even your layout table is a work of art!!!
I'd use that as a dining room table!!
|
07-21-2015, 09:40 PM
|
|
CC Member
|
|
|
Join Date: Aug 2007
Cobra Make, Engine:
Posts: 73
|
|
Not Ranked
Awesome!
|
07-22-2015, 04:36 PM
|
|
CC Member
|
|
|
Join Date: Mar 2001
Location: Provo,
Ut
Cobra Make, Engine: Kirkham, 427
Posts: 6,990
|
|
Not Ranked
Quote:
Originally Posted by slider701
Good God.......even your layout table is a work of art!!!
I'd use that as a dining room table!!
|
DenBeste saw it and asked if we could make him a table too.
David
|
07-22-2015, 04:42 PM
|
|
CC Member
|
|
|
Join Date: Mar 2001
Location: Provo,
Ut
Cobra Make, Engine: Kirkham, 427
Posts: 6,990
|
|
Not Ranked
If you guys look really, really closely you can see the tubes are almost--almost--a perfect fit. It is very hard to see in a photo. The camera makes it look like there is a bit of a gap in the fitment...
BUT...
We were very, very careful to draw and program the tubes so the laser would cut the intersecting tube normal to the surface (of that same tube). If you cut one tube absolutely tangent to another tube the edge will feather out, thinning to nothing. That "nothing" is actually so thin (like thinner than paper) when you weld the tubes together the steel will literally boil, burn, and contaminate the weld.
I'll try to get a close up so you can see what I am talking about. It's a bit hard to explain.
David
|
07-22-2015, 06:24 PM
|
 |
CC Member
|
|
|
Join Date: Jul 2006
Location: Redding,
CA
Cobra Make, Engine: FFR chassis and suspension, Mr. Bruce 289 FIA body
Posts: 1,066
|
|
Not Ranked
Incredible. No words aptly describe it.
|
07-22-2015, 07:41 PM
|
 |
CC Member
|
|
|
Join Date: Feb 2000
Location: St. Lucia, West Indies,
WI
Cobra Make, Engine: Unique 427SC 383 stroker
Posts: 3,767
|
|
Not Ranked
You guys are having way too much fun doing this stuff. it speaks volumes about what to expect from the final product when even your tooling is jewelry-grade quality.
__________________
Tropical Buzz
Grant me the serenity to accept the things I cannot change, the strength to change the things I can, and the wisdom to know the difference. -(wasn't me)
BEWARE OF THE DOGma!! Dogmatism bites...
Last edited by Buzz; 07-24-2015 at 07:47 AM..
|
07-27-2015, 03:06 PM
|
|
CC Member
|
|
|
Join Date: Mar 2001
Location: Provo,
Ut
Cobra Make, Engine: Kirkham, 427
Posts: 6,990
|
|
Not Ranked
|
