The most impressive part on that car is the rear wheelhouse, I'd love to see that being machined.
|
-
Advertising
07-29-2008, 10:55 AM
|
 |
CC Member
|
|
|
Join Date: Mar 2001
Location: Provo,
Ut
Cobra Make, Engine: Kirkham, 427
Posts: 6,990
|
|
Not Ranked
|
07-29-2008, 12:08 PM
|
|
CC Member
|
|
|
Join Date: Mar 2001
Location: Provo,
Ut
Cobra Make, Engine: Kirkham, 427
Posts: 6,990
|
|
Not Ranked
|
07-29-2008, 12:34 PM
|
|
CC Member
|
|
|
Join Date: Mar 2001
Location: Provo,
Ut
Cobra Make, Engine: Kirkham, 427
Posts: 6,990
|
|
Not Ranked
|
07-29-2008, 01:13 PM
|
|
CC Member
|
|
|
Join Date: Mar 2001
Location: Provo,
Ut
Cobra Make, Engine: Kirkham, 427
Posts: 6,990
|
|
Not Ranked
Quote:
Originally Posted by mr bruce
The most impressive part on that car is the rear wheelhouse, I'd love to see that being machined.
|
Too bad we didn't film that. The only way we could make that part is with a full 4 axis machine. That means all 4 axis of the machine are moving at once--X, Y, Z, and A. A is the rotary axis so the part is spinning while the machine is moving up, down, left and right, in and out. We had to move in all 4 axis to spin the part around the tool to get into the tight spots. We then had to "unwind" the part to get the tool back out.
I will look for some more pics of it being made for you.
David
 |
07-29-2008, 01:23 PM
|
|
CC Member
|
|
|
Join Date: Mar 2001
Location: Provo,
Ut
Cobra Make, Engine: Kirkham, 427
Posts: 6,990
|
|
Not Ranked
The block we started with weighed 225 pounds. Each finished wheel house weighs about 2-3 pounds. (I'd have to check and see if I ever wrote it down). Here you can see Sandwich sawing the billet log in 1/2. The chunk of aluminum is pretty big--but it was the only way to turn the corner on the chassis to feed the rear suspension loads to the front of the car and finish off the tub.
Last edited by David Kirkham; 07-29-2008 at 02:30 PM..
|
07-29-2008, 01:26 PM
|
|
CC Member
|
|
|
Join Date: Mar 2001
Location: Provo,
Ut
Cobra Make, Engine: Kirkham, 427
Posts: 6,990
|
|
Not Ranked

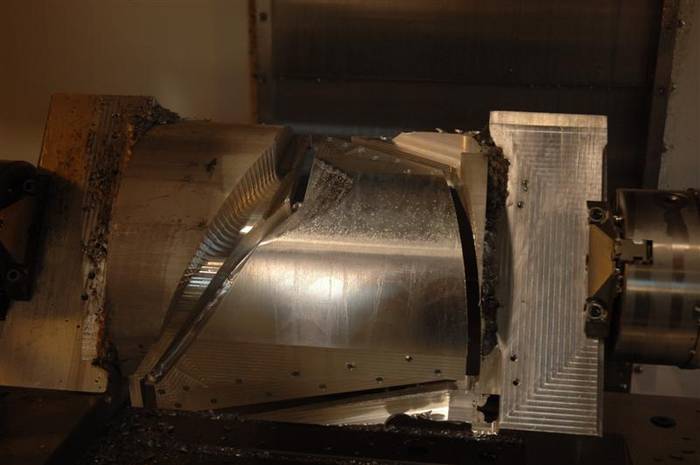

Here one of the 1/2's of the block has been mounted into the mill. We welded extensions on to the block to get it far enough away from the rotary axis so the spindle didn't crash. We then cut the welded on areas off (along with any heat affected zone).
 |
07-29-2008, 01:28 PM
|
|
CC Member
|
|
|
Join Date: Mar 2001
Location: Provo,
Ut
Cobra Make, Engine: Kirkham, 427
Posts: 6,990
|
|
Not Ranked
Here is a shot of the part almost finished.
 |
07-29-2008, 02:27 PM
|
|
CC Member
|
|
|
Join Date: Mar 2001
Location: Provo,
Ut
Cobra Make, Engine: Kirkham, 427
Posts: 6,990
|
|
Not Ranked
|
07-29-2008, 02:30 PM
|
|
CC Member
|
|
|
Join Date: Mar 2001
Location: Provo,
Ut
Cobra Make, Engine: Kirkham, 427
Posts: 6,990
|
|
Not Ranked
Mr. Bruce,
That is all the pics of the rear wheel well I could find. If I find any more I will post them for you.
Thanks for watching!
David
|
07-29-2008, 02:47 PM
|
|
CC Member
|
|
|
Join Date: Mar 2001
Location: Provo,
Ut
Cobra Make, Engine: Kirkham, 427
Posts: 6,990
|
|
Not Ranked
As you can imagine, that makes a LOT of chips!
 |
07-29-2008, 02:54 PM
|
|
CC Member
|
|
|
Join Date: Oct 2001
Location: Lehi,
UT
Cobra Make, Engine: Polished KMP #488 / 427SC, 427 SO/482 by KC
Posts: 431
|
|
Not Ranked
Boy! They are cracking the whip on David to get this car done...
http://www.youtube.com/watch?v=GA03miHe3zk&NR=1 |
07-29-2008, 03:59 PM
|
|
CC Member
|
|
|
Join Date: Dec 1999
Location: Battle Ground, WA USA,
Posts: 74
|
|
Not Ranked
Hello Scotty,
Will it have a transparent aluminum window or is that just too much to ask?
Cheers
Mike
|
07-29-2008, 04:07 PM
|
|
CC Member
|
|
|
Join Date: Mar 2001
Location: Provo,
Ut
Cobra Make, Engine: Kirkham, 427
Posts: 6,990
|
|
Not Ranked
Last edited by David Kirkham; 07-29-2008 at 04:50 PM..
|
07-29-2008, 04:50 PM
|
|
CC Member
|
|
|
Join Date: Mar 2001
Location: Provo,
Ut
Cobra Make, Engine: Kirkham, 427
Posts: 6,990
|
|
Not Ranked
|
07-29-2008, 09:04 PM
|
|
CC Member
|
|
|
Join Date: Mar 2001
Location: Provo,
Ut
Cobra Make, Engine: Kirkham, 427
Posts: 6,990
|
|
Not Ranked
|
07-29-2008, 09:06 PM
|
|
CC Member
|
|
|
Join Date: Mar 2001
Location: Provo,
Ut
Cobra Make, Engine: Kirkham, 427
Posts: 6,990
|
|
Not Ranked
Quote:
Originally Posted by CobraMike
Hello Scotty,
Will it have a transparent aluminum window or is that just too much to ask?
Cheers
Mike
|
If I could figure out how to do it, I would!
David
|
07-29-2008, 09:11 PM
|
|
CC Member
|
|
|
Join Date: Mar 2001
Location: Provo,
Ut
Cobra Make, Engine: Kirkham, 427
Posts: 6,990
|
|
Not Ranked
Quote:
Originally Posted by franklin
|
I think I am the one cracking the whip here...mostly on ME.
David
|
07-29-2008, 09:21 PM
|
|
CC Member
|
|
|
Join Date: Mar 2001
Location: Provo,
Ut
Cobra Make, Engine: Kirkham, 427
Posts: 6,990
|
|
Not Ranked
|
07-29-2008, 09:27 PM
|
|
CC Member
|
|
|
Join Date: Mar 2001
Location: Provo,
Ut
Cobra Make, Engine: Kirkham, 427
Posts: 6,990
|
|
Not Ranked
Door sil tube (right under the door).
Last edited by David Kirkham; 07-29-2008 at 09:38 PM..
|
