Default Intake Gasket Leak?



Last week I noticed a small pool of oil around the front most bolt above cylinder No. 1 on the intake manifold and another small pool of coolant in the valley of the water pump as noted in the photo, the photo was taken after I cleaned the affected areas. I'm looking for an analysis and most likely a confirmation that I have a leaking intake manifold gasket. I've long suspected there may be a leak as the No. 1 cylinder spark plug has a slightly lighter color than the other plugs but, I have been unable to confirm this using the carb cleaner, propane or WD 40 methods.

I retorqued the intake manifold bolts, but the leaks reappeared after about 200 miles. There are no leaks while the engine is running, they appear overnight. No coolant in the oil and no smoke/steam from the exhaust. The engine runs strong and has acceptable idle for the installed cam.

The intake manifold is a RPM Airgap and heads are Brodix 5.0 STR.

Brodix recommends Felpro 1250 gaskets; are ther better ones available?
Reply With Quote
  #2 (permalink)
Old 11-28-2012, 01:38 PM
PeteF's Avatar
CC Member
Visit my Photo Gallery


Join Date: Apr 2008
Location: Glastonbury, Ct
Cobra Make, Engine: ERA2041 sold 2021
Posts: 241
Not Ranked
Default

Make sure it isn't leaking from the thermostat housing, especially if you have a chrome one with o-rings instead of a flat paper gasket. I replaced the o-ring type housing with a factory type with paper gasket and cured my leak. Good luck.
Reply With Quote
  #3 (permalink)
Old 12-05-2012, 03:31 AM
PANAVIA's Avatar
CC Member
Visit my Photo Gallery


Join Date: May 2008
Location: San Jose CA, CA
Cobra Make, Engine: SPF_R_/BRG/FRBoss302/327CI/FordEFI/Under_Car_Exh/
Posts: 2,523
Not Ranked
Default

Go lookup the port size of the #1250 felpros and replace them with the correct size edelbrock gaskets - Brodix probably wont recommend this as Vic and chisty make heads as well .....!

On antique fords, if I can use an edelbrock intake gasket - I do!
__________________
Steve SPF 2734 MK3 / Brock Coupe #54- panavia.com
Reply With Quote
  #4 (permalink)
Old 12-28-2012, 02:09 PM
bingo2's Avatar
CC Member
Visit my Photo Gallery


Join Date: Aug 2010
Cobra Make, Engine: RUCC, SB 331 Stroker
Posts: 171
Not Ranked
Default

Results of my intake manifold gasket leak investigation:

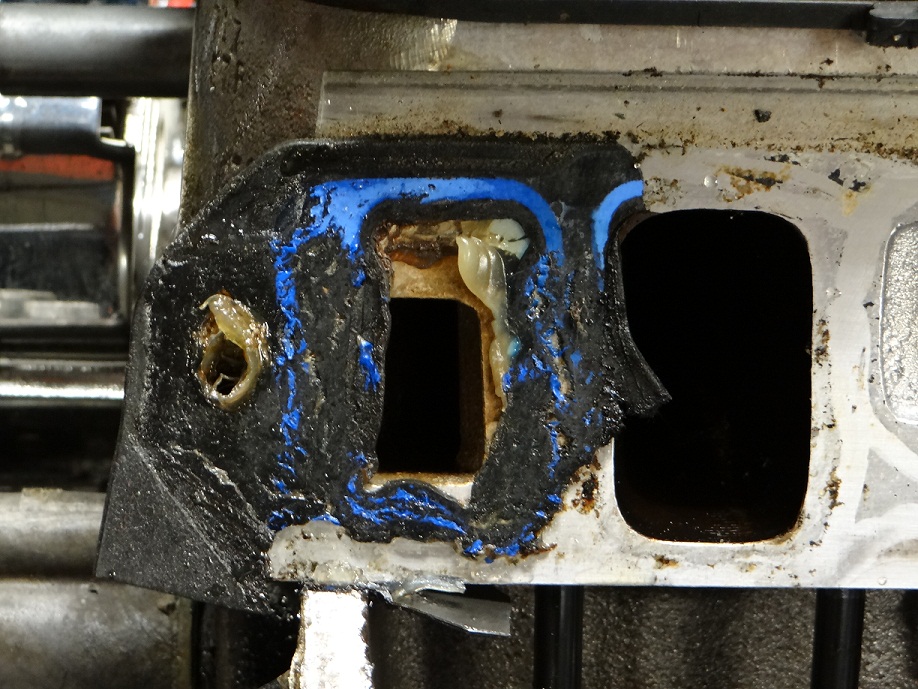

This is the water passage and intake port above cylinder No. 5. There was no leak here, I wanted to show it because I couldn't believe what I had found.

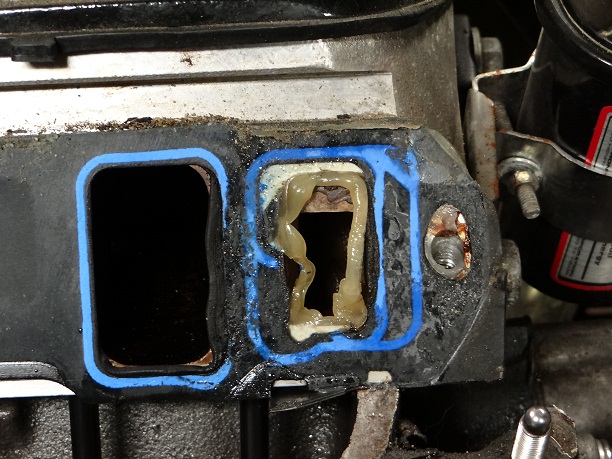

This is the water passage and intake port above cylinder No. 1. Definitely a leak here!

.

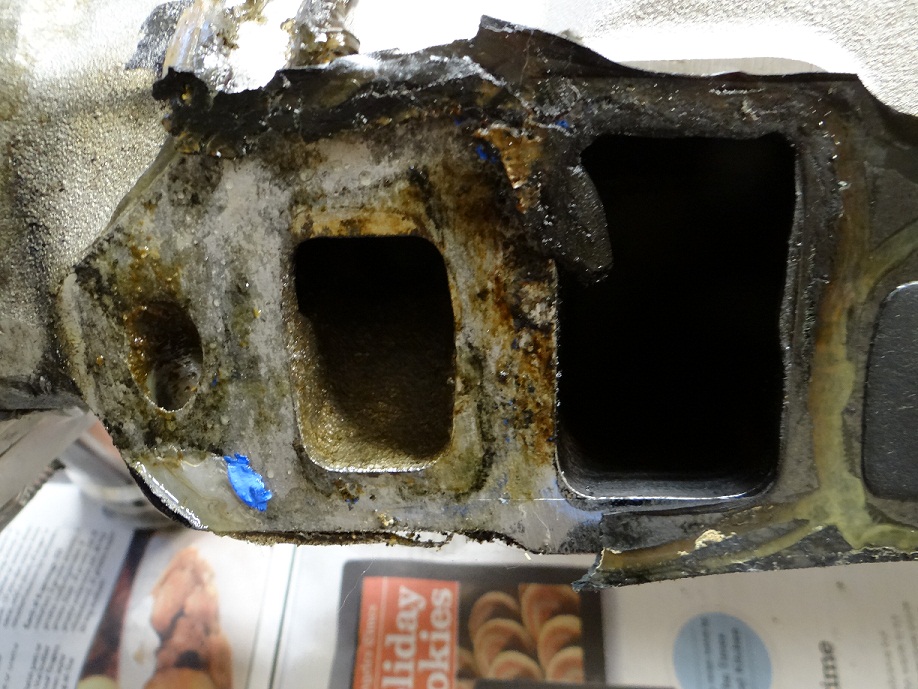

This is the corresponding water passage and intake runner on the manifold above cylinder No. 1.

I'm curious as to the cause of this. Is it really the fault of the FelPro 1250 gasket or is it poor preparation and installation technique?
Reply With Quote
  #5 (permalink)
Old 12-28-2012, 05:44 PM
Gaz64's Avatar
CC Member
Visit my Photo Gallery


Join Date: May 2008
Location: Brisbane, QLD
Cobra Make, Engine:
Posts: 2,797
Not Ranked
Default

Can't see your pics, can you post them some other way?
__________________
Gary

Gold Certified Holden Technician
Reply With Quote
  #6 (permalink)
Old 12-28-2012, 06:10 PM
bingo2's Avatar
CC Member
Visit my Photo Gallery


Join Date: Aug 2010
Cobra Make, Engine: RUCC, SB 331 Stroker
Posts: 171
Not Ranked
Default

Here ya go.

Reply With Quote
  #7 (permalink)
Old 12-29-2012, 02:10 AM
Gaz64's Avatar
CC Member
Visit my Photo Gallery


Join Date: May 2008
Location: Brisbane, QLD
Cobra Make, Engine:
Posts: 2,797
Not Ranked
Default

What fills the gap between the base of the inlet manifold and the top of the block, valley area?

Reason being a gasket here may not allow the manifold to seat well against the heads. A bead of silicon works best.

Does the inlet manifold EXACTLY match the cylinder head angles?

The sealant type and application technique is poor quality.
__________________
Gary

Gold Certified Holden Technician
Reply With Quote
  #8 (permalink)
Old 12-29-2012, 04:04 AM
CC Member
Visit my Photo Gallery


Join Date: Jun 2012
Location: Naracoorte, SA
Cobra Make, Engine: CR Cobra 3169
Posts: 818
Not Ranked
Default

Looks like overtightening and squishing the gasket out. The silastic helps in doing this.
JD
Reply With Quote
  #9 (permalink)
Old 12-29-2012, 09:38 AM
CC Member
Visit my Photo Gallery


Join Date: Mar 2004
Cobra Make, Engine: spf 2112 *427 stroker windsor
Posts: 333
Not Ranked
Default

Looks like over tightening and bad prepping to me as well.
Replace with fel pro 1250S.
The S stands for sandwiched steel core.
Reply With Quote
  #10 (permalink)
Old 12-29-2012, 01:47 PM
bingo2's Avatar
CC Member
Visit my Photo Gallery


Join Date: Aug 2010
Cobra Make, Engine: RUCC, SB 331 Stroker
Posts: 171
Not Ranked
Default

Thanks for the replies. I already concluded the manifold and cylinder head preparation was less than ideal. I suspect the surfaces had some oil residue remaining prior to the application of an excessive amount of silicone as evidenced in the photos.

After removal of the old gasket material and a thorough cleaning of all surfaces I replaced the gaskets with FelPro 1250 S3 and used "The Right Stuff" on the China Walls and a very thin application of RTV around the water passages on the manifold and cylinder heads.
